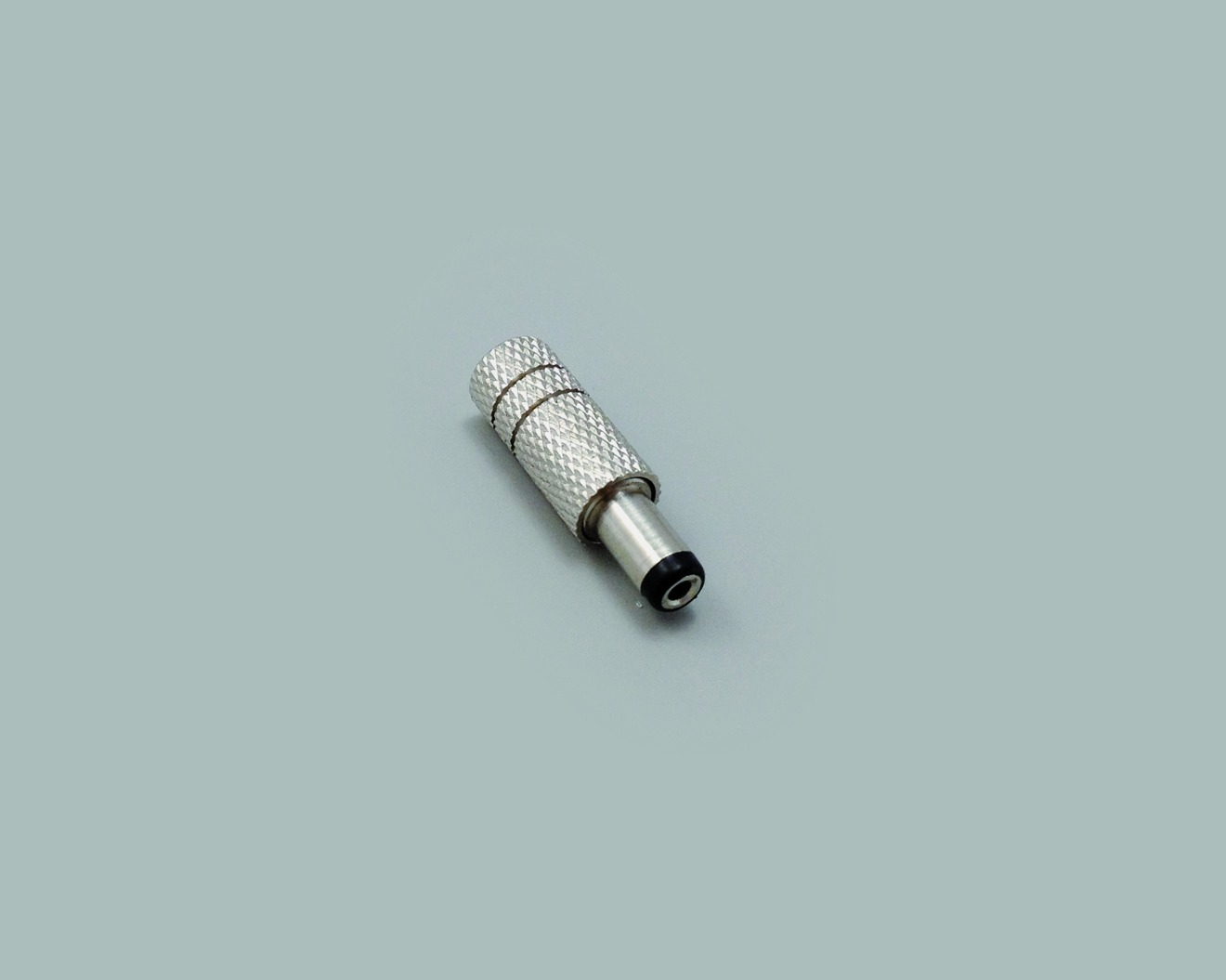

low power plug 2,5/5,5/9,5mm, full metall type
Technical data
| Category | low power connector |
|---|---|
| Cable Ø | 5,0 mm |
| Colour | silver |
| Connector system | Plug-in |
| Contact material | nickel-plated |
| Design | Plug |
| Housing material | Brass |
| Inner Ø | 2,5 mm |
| Outer Ø | 5,5 mm |
| Pin Ø | 2,5 mm |
| Rated current | 3A |
| Rated voltage | 12V DC |
| Shaft length | 9,5 mm |
| Special features | All-metal design |
| Termination | Soldering |
| Weight in kg/pc. | 0,006 |
