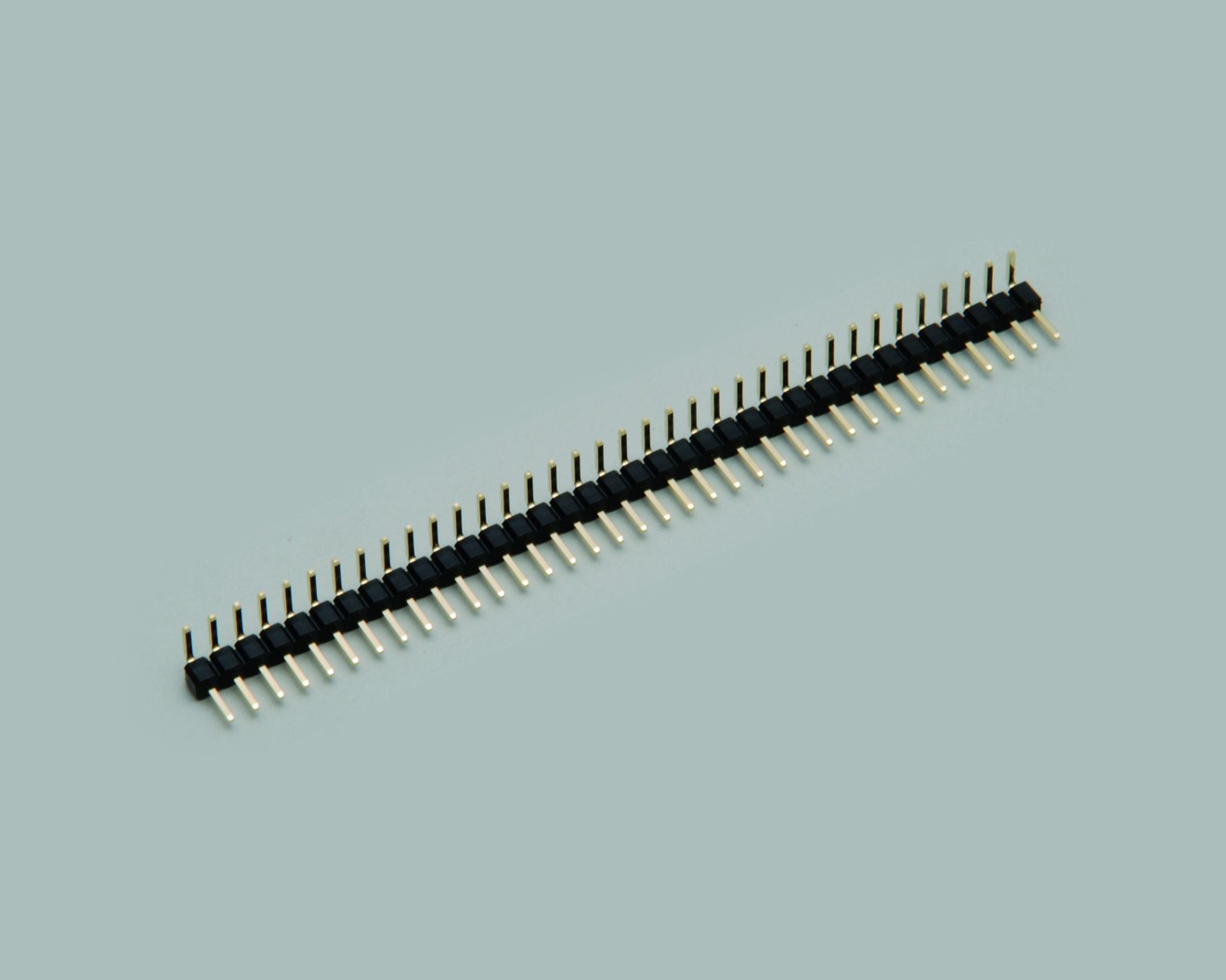

pin header 36-pin, angled, fully gold plated, separable, grid pitch 2,54mm, pin spacing 1,27mm
Technical data
| Category | PCB connector grid pitch 2,50mm |
|---|---|
| Colour | black |
| Contact material | Copper alloy |
| Contact resistance | Max. 20 mΩ |
| Contact surface | gold-plated |
| Design | Pin header |
| Detachable | Ja |
| Height | 5.84 mm |
| Housing material | Thermoplastic |
| Insulation resistance | 1000 MΩ |
| Length | 91.44 mm |
| Max. temperature | +105 °C |
| Min. temperature | ‑55 °C |
| Number of rows | 1 |
| Pin length (PCB side) | 3.3 mm |
| Pin length (mating side) | 4,5 mm |
| Pin shape | Rectangular |
| Pitch | 2,54 mm |
| Poles per row | 36 |
| Rated current | 3A |
| Termination | PCB |
| Total number of poles | 36 |
| Weight in kg/pc. | 0,002 |
| Width | 8.31 mm |
