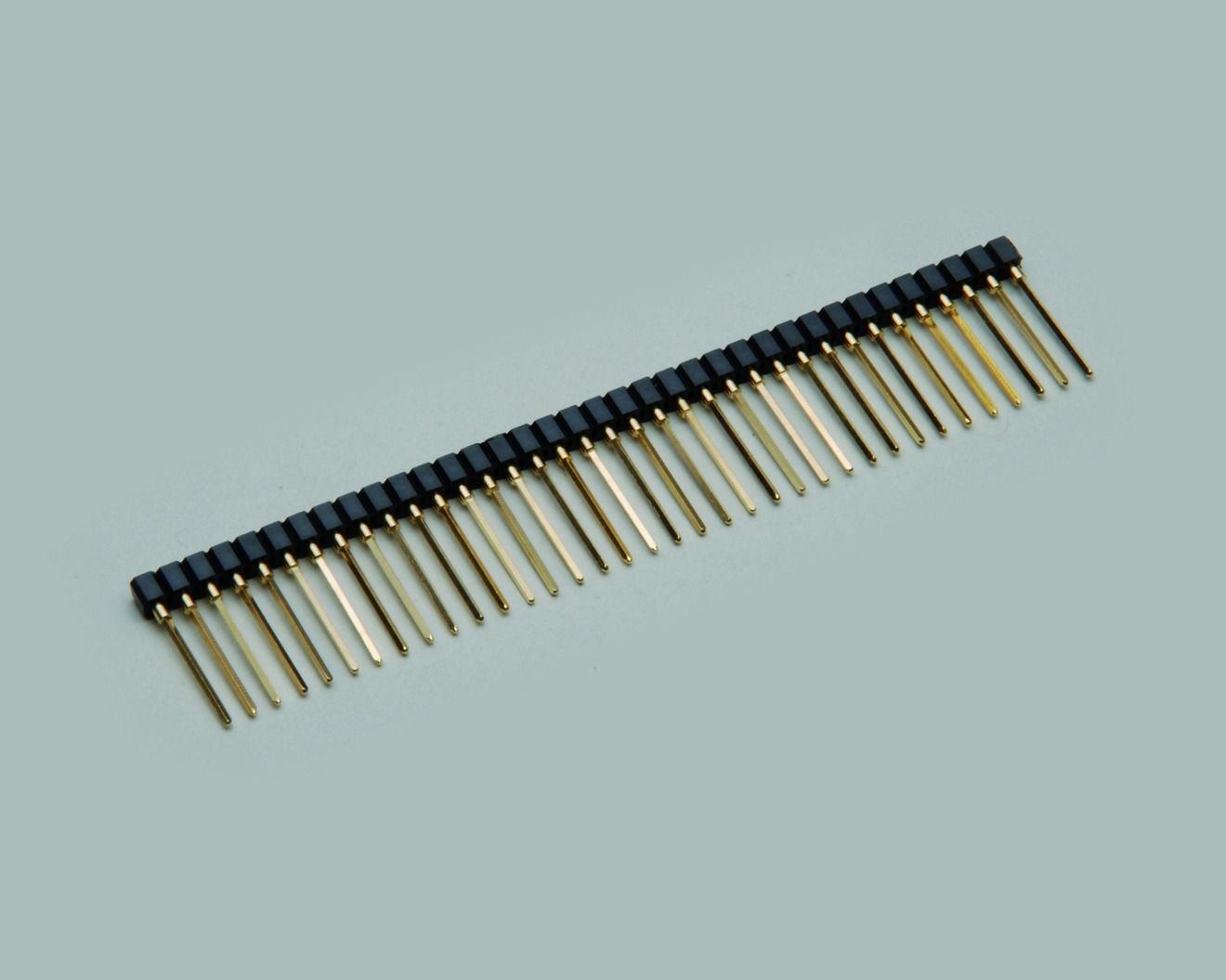

precision connector, 36-pin, wire wrap connection, gold plated contacts, square pin 0,7x0,7mm, 6 finger contacts, separable, grid pitch 2,54mm, height 3,0mm
Technical data
| Category | PCB connector grid pitch 2,50mm |
|---|---|
| Colour | black |
| Contact material | Copper alloy |
| Contact surface | gold-plated |
| Design | Socket header |
| Detachable | Ja |
| Height | 2.54 mm |
| Housing material | PPS |
| Insulation resistance | 1000 MΩ |
| Jack depth | 3.00 mm |
| Length | 91.4 mm |
| Mating direction | Perpendicular to the PCB |
| Max. temperature | +105 °C |
| Min. temperature | ‑55 °C |
| Number of rows | 1 |
| Pin length (PCB side) | 13.0 mm |
| Pin length (mating side) | 13 mm |
| Pin shape | Rectangular |
| Pin Ø | 0,8 mm |
| Pitch | 2,54 mm |
| Poles per row | 36 |
| Rated current | 3A |
| Rated voltage | 60V |
| Termination | PCB |
| Total number of poles | 36 |
| Weight in kg/pc. | 0,004 |
| Width | 17.83 mm |
