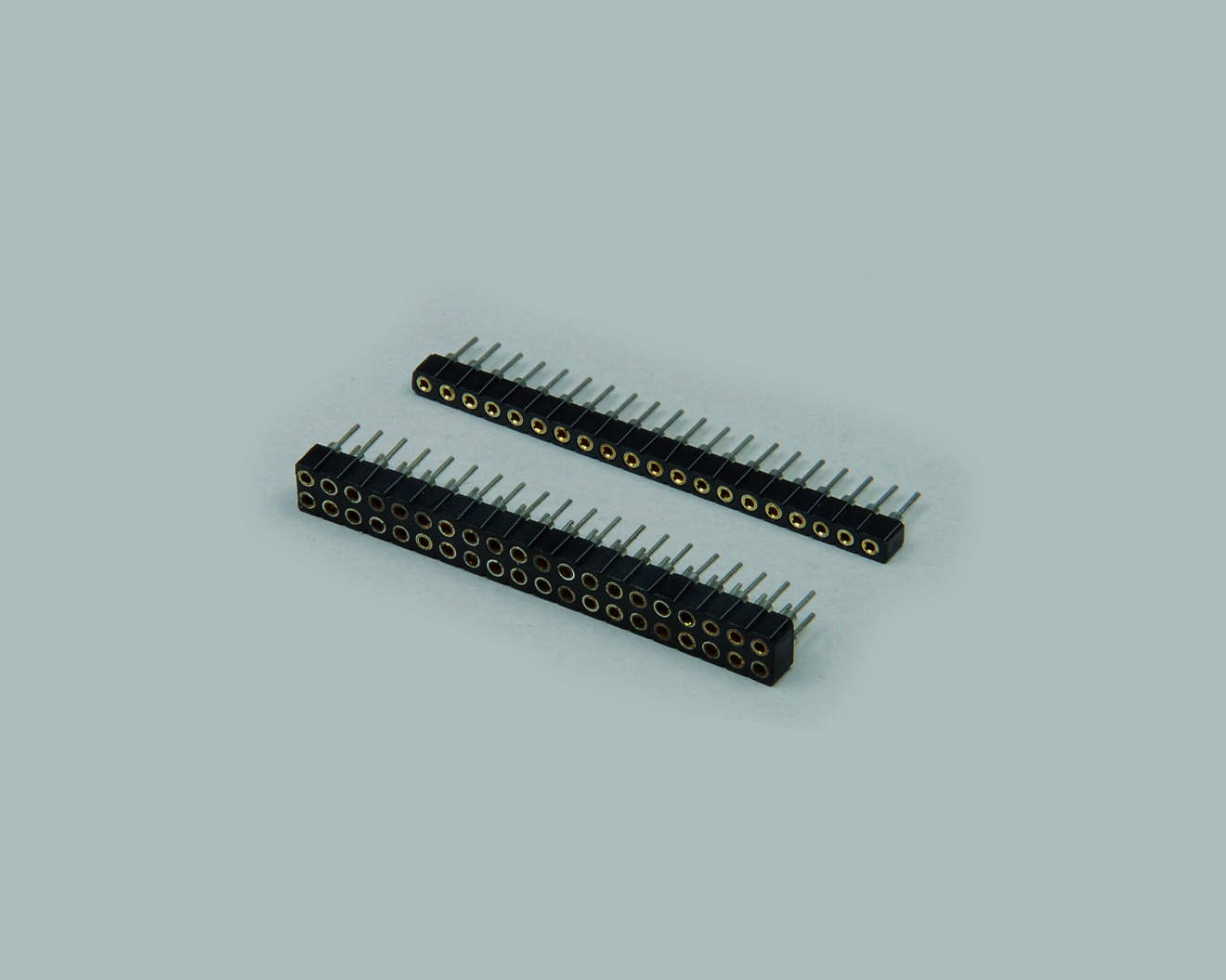

precision socket connector, 20-pin, selectively gold plated contacts 0,45mm (round), tinned, grid pitch 2,00mm, height 2,8mm
Technical data
| Category | PCB connector grid pitch 2,50mm |
|---|---|
| Colour | black |
| Contact material | Copper alloy |
| Contact surface | selectively gold-plated |
| Design | Socket header |
| Detachable | No |
| Height | 2.20 mm |
| Housing material | Thermoplastic |
| Insulation resistance | 1000 MΩ |
| Jack depth | 2.80 mm |
| Length | 40.0 mm |
| Mating direction | Perpendicular to the PCB |
| Max. temperature | +105 °C |
| Min. temperature | ‑55 °C |
| Number of rows | 1 |
| Pin length (PCB side) | 4.28 mm |
| Pin length (mating side) | 2,8 mm |
| Pin shape | Round |
| Pin Ø | 0,45 mm |
| Pitch | 2,0 mm |
| Poles per row | 20 |
| Rated current | 3A |
| Rated voltage | 60V |
| Termination | PCB |
| Total number of poles | 20 |
| Weight in kg/pc. | 0,001 |
| Width | 7.40 mm |
